Don't put up with an unsafe, unsightly electrical box installation. You can easily fix the problem by installing an electrical box extender.
Our editors and experts handpick every product we feature. We may earn a commission from your purchases.Learn more.
Time 20 minutes
ComplexityBeginner
Cost$5
Introduction

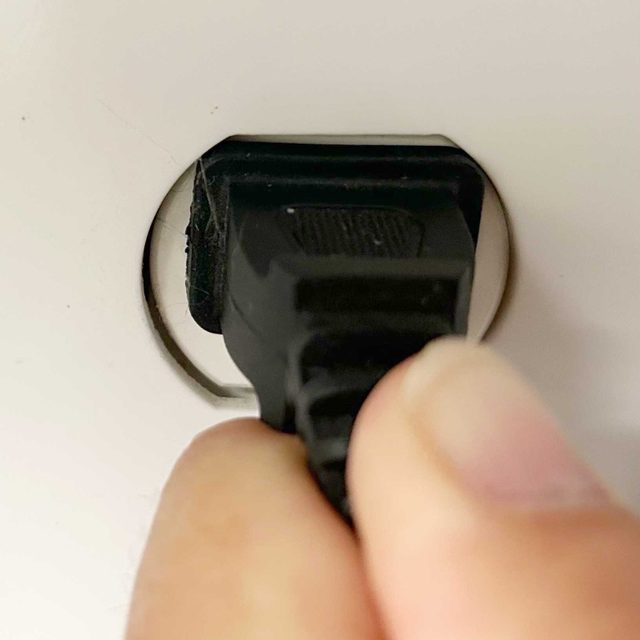

Do you have a receptacle that seems loose, or is set back too far in the faceplate? Or maybe you're considering adding a backsplash, but you're not sure how to move the electrical devices out to accommodate the tile. The remedy in both cases? An electrical box extender.

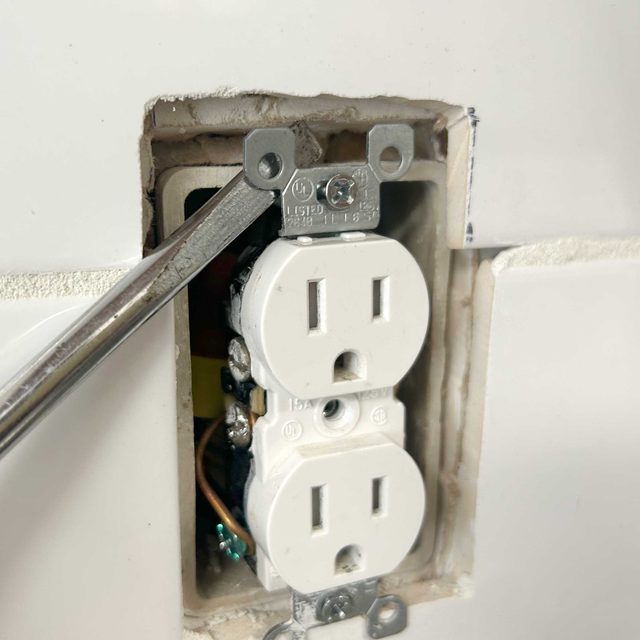

Box extenders are inexpensive, easy to install and — best of all — they bring your electrical installation up to code. Flush-mounted devices like receptacles and switches can only have a 1/4-inch gap between the front of the electrical box and the finished wall. If you add a layer of drywall, put up shiplap or install tile, you'll go over this limit.
Here's how to install an electrical box extender.
Tools Required
- Flat-head screwdriver
- Level
- Non-contact voltage tester
- Phillips screwdriver or drill with Phillips bit
- Wire strippers (optional)
Materials Required

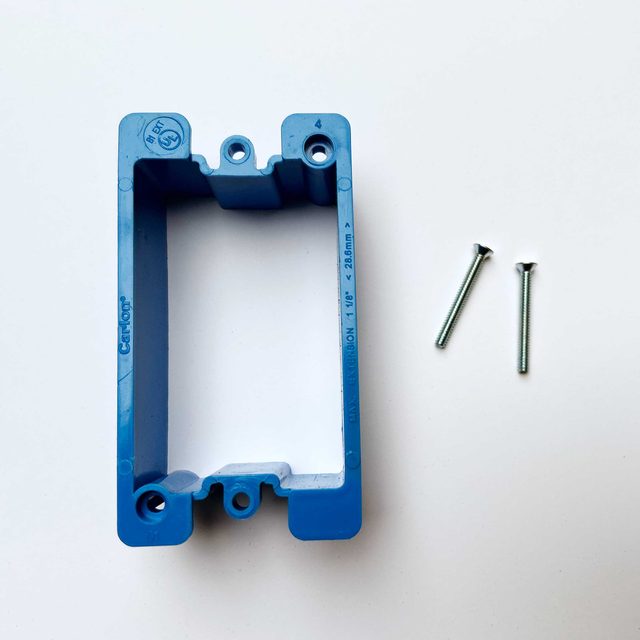

- Electrical box extender
- Electrical wire (optional)
- Wago lever nuts (optional)
Watch How to Use an Electrical Box Extender
Project step-by-step (5)
Turn off power
- Turn off power to the receptacle at the breaker.

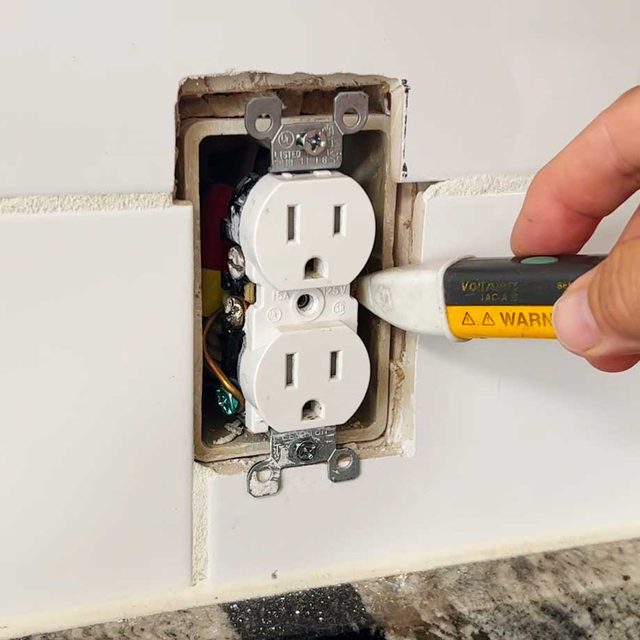

- Test with a non-contact voltage tester to verify the power is off.
- If the tester beeps, do not proceed until you figure out which breaker controls the receptacle.
Remove faceplate
- Remove the faceplate by unscrewing the small screw(s) holding it in place.
- Run the voltage tester along the sides of the receptacle to ensure the power is off.
Detach existing receptacle
- Remove two 6-32 screws holding the receptacle to the existing box.
- Gently pull the mounting straps to extract the receptacle from the box.
- Stick your tester deep into the box to check any additional wires for power.
- Find and turn off any additional breakers if tester beeps.
Add box extender
- Leave the receptacle wired, if wires are long enough to extend out to new position.
- If the wires are too short, remove and extend wires with pigtails and Wago lever nuts.
- Slide the receptacle through box extender and push the extender into electrical box.
- Insert provided 6-32 screws through the device mounting strap and box extender.
- These will be longer than the ones you took off, to accommodate the extender.
- Level as you screw the receptacle and extender into the electrical box.
Finish
- Reattach the faceplate.
- Turn on the breaker.
- Verify the receptacle works.
